Home > products > Dolphin Series > UHF Metal Tag Dolphin Series OPP3613

On metal RFID tags On metal RFID Tags OPP3613
According to the market need ,OPPIOT technology team developed UHF RFID tags OPP3613 ,which is a rugged waterproof UHF tag can be used for tracking metal assets and equipment such as machinery, parts, containers, railway cars, trolleys, trailers, with very good performance in identification and tracking of the objects ,The RFID tracking tags OPP3613 may also can be used in an array of applications, improving efficiency, reliability and punctuality in public areas mass transportation systems from trams to light rail vehicles, metro systems, people mover systems and freight rail systems.


Functional Specifications:
RFID Protocol EPC Class1 Gen2, ISO18000-6C
Frequency US 902-928MHz, EU 865-868MHz
IC type Alien Higgs-3
Memory EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles 100,000times
Functionality Read/write
Data Retention Up to 50 Years
Applicable Surface Metal Surfaces
Read Range(On Metal) :
(Fix Reader:ThingMagic M6-E, 36dBm/4W)
Up to 4.7M - (US) 902-928MHz, on metal
Up to 4.5M - (EU) 865-868MHz, on metal
Read Range(On Metal) :
(Handheld Reader: OP9908,R2000,33dBm/2W)
Up to 2.7M - (US) 902-928MHz, on metal
Up to 2.5M - (EU) 865-868MHz, on metal
Warranty 1 Year

Physical Specification:

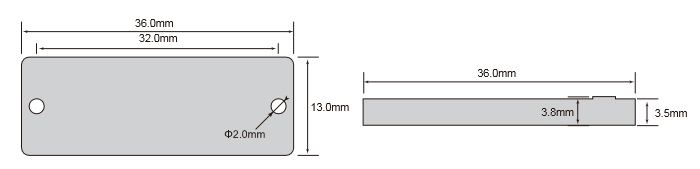

Size 36x13mm, (Hole: D2mm)
Thickness 3.5mm
Material FR4 (PCB)
Colour Black (Red, Blue, Green, White)
Mounting Methods Adhesive, Screw
Weight 3.5g

Enivironmenal Specification:
IP Rating IP68
Storage Temperature -40°C to +150°C
Operation Temperature -40°C to +100°C
Certifications Reach Approved,RoHS Approved,CE Approved
