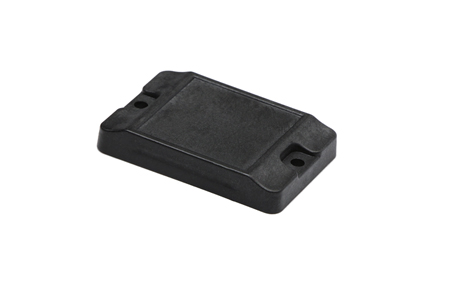

180°C High Temp RFID Tags OPP4600
OPP4600 is a High Temperature RFID tag optimized for metal substrates. With a combined ability to survive high temperatures to 180°C and a rugged encapsulation, this tag is ready for deployment in a variety of applications without sacrificing read range performance.
|
Functional Specifications: |
RFID Protocol |
EPC Class1 Gen2, ISO18000-6C |
Frequency |
US 902-928MHz, EU 865-868MHz |
IC type |
Alien Higgs-3, (Available in Monza M4QT, Monza R6, UCODE 7XM+,etc) |
Memory |
EPC 96bits (Up to 480bits) , User 512bits, TID64bits |
Write Cycles |
100,000 times |
Functionality |
Read/write |
Data Retention |
50 years |
Applicable Surface |
on metal |
Read Range:
(Fix Reader) |
6.5 meters (US) 902-928MHz, on metal;
6.6 meters (EU) 865-868MHz, on metal; |
Read Range:
(Handheld Reader) |
4.4 meters (US) 902-928MHz, on metal;
4.6 meters (EU) 865-868MHz, on metal; |
Warranty |
1 year |
Size |
46.5x31.5x7.5mm, Hole: dia3.6mmx2 |
Thickness |
7.5mm |
Material |
Antenna: ceramic; shell: PEEK |
Colour |
Black |
Mounting Methods |
Screw-M3, Rivet, Back Glue |
Weight |
22g |
Enivironmenal Specification: |
IP Rating |
IP68 |
Storage Temperature |
-40℃ to +180℃ |
Operation Temperature |
-25℃ to +150℃ |
Certifications |
Reach Approved,RoHS Approved,CE Approved |
|
