Home > products >Devil High Temp RFID Tag > Devil3000

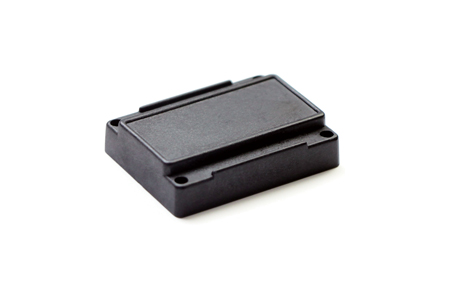

high temperature Resistant tag High Temperature and Acid Alkali Resistant Tag Devil3000


Devil3000 RFID tags are specifically designed to be the most rugged RFID-on-metal tags for industrial markets where critical and potentially hazardous situations require reliable identification of assets. The Devil3000 can survive temperatures of up to 260°C and other harsh elements such as high impact and caustic chemicals. Devil3000 UHF tags are constructed with robust materials and rated IP68 for high reliability and durability in all types of environments.


Functional Specifications:
RFID Protocol EPC Class1 Gen2, ISO18000-6C
Frequency US 902-928MHz, EU 865-868MHz
IC type Alien Higgs-3
Memory EPC 128bits, User 128bits, TID64bits
Write Cycles 100,000 times
Functionality Read/write
Data Retention 50 Years
Applicable Surface Metal Surfaces

Read Range(On Metal) :(Fix Reader)

1.5m (US) 902-928MHz, On metal;

1.5m (EU) 865-868MHz, On metal;

Read Range(On Metal) :(Handheld Reader)

1.0m (US) 902-928MHz, On metal;
0.8m (EU) 865-868MHz, On metal;

Warranty 1 Year

Physical Specification:
Size 35x27x10mm, Hole: Dia2.5mmx4
Thickness 10mm
Material PEEK
Colour Black
Mounting Methods Screw(M2)
Weight 11g

Enivironmenal Specification:
IP Rating IP68, IP69X
Storage Temperature -60°C to +230°C (Withstand 260°С for 1500 hours) )
Operation Temperature -40°C to +150°C
Compression strength 150Mpa
Certifications Reach, RoHs, CE, ATEX
