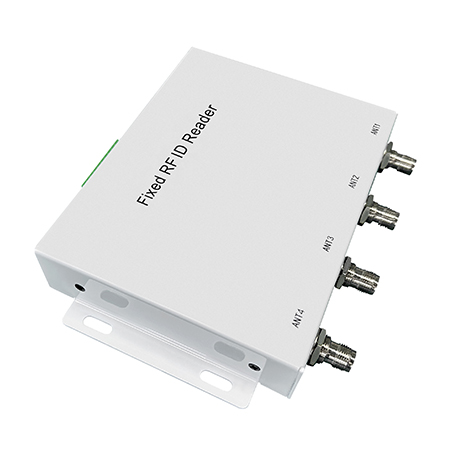

The OPPMAX4 is a 4-port RFID fixed reader designed for both indoor and outdoor applications. Adopt Impinj Indy E710 chip, with high-performance multi-tag identifi cation algorithms.
Linux rfid reader OPPMAX4 has built-in Linux operating system, which not only meets the complex customer business requirements, but also responds to various label operations independently and quickly. Multi-tag reading performance is excellent, supporting intensive reading, large capacity tag reading and writing, received signal strength detection (RSSI). It has reliable network adaptability, supports a variety of network protocols, and is easy to deploy large-scale applications.
| Mechanical electrical performance: |
| Equipment size Dimension (MM) | 187(L)*123(W)*34(H) (±1) |
| Diemension including packaging (MM) | 317(L)*255(W)*66(H) (±3) |
| Net weight (KG) | 1.00± (±0.1) |
| Gross weight (KG) | 1.50± (±0.1) |
| Shell | White, sheet metal, durable |
| Performance Index: |
| Tag/Transponder Protocols | EPCglobal Gen 2 (ISO 18000-6C) |
| RF Connector | 4 RP-TNC antenna connectors |
| Frequency | 865~868MHz/902～928MHz (Can be adjusted according to different countries or regions) |
| Frequency modulation | FHSS or fixed-frequency, can be set by software |
| RF output | from 0 dBm to 33 dBm* with +/-1dBm |
| Reading distance | 9dbi Antenna configuration, typical read range: 10 to 20 m (depends on tag) |
| Peak inventory speed | > 400 tags/sec |
| Tag Buffer Size | 100,000tags @ 96 bit EPC |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Working mode | the principal and subordinate mode /off-line working mode/Trigger mode |
| Power | With 220V AC input, the output of +12 V/4A DC power converter, POE（Optional） |
| input / output (GPIO) | 2 inputs, 4 output |
| ommunication interface | RJ45(10/100 Base-T Ethernet), RS232 |
| Operating System | Linux |
| Communication protocol | RS-232, TCP/IP, Modbus (Optional), HTTP/HTTPS (Optional),MQTT (Optional), RabbitMQ (Optional) |
| Host API | C#, JAVA |
| Development Environment | Linux, Android, Windows, PLC, Web |
| Environment: |
| Operating Temp | -20～+55℃ |
| Storage Temp | -20～+85℃ |
| Humidity | 5%～95%RH, Non-condensing |
