30m reading range rfid tag UHF RFID Readers OPP72

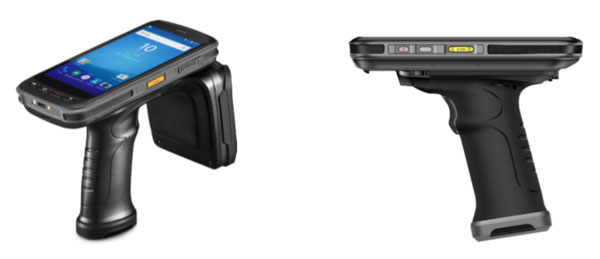

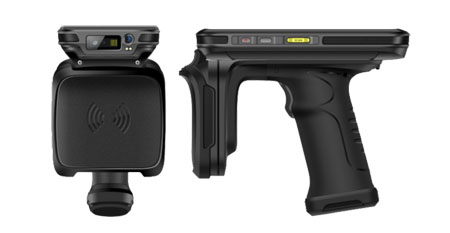

UHF RFID Reader OPP72



This device is an Android rugged mobile computer. It features quad-core processor, 8000mAh battery and superb UHF RFID capability. It can be equipped with R2000 linearly or circularly polarized antenna. That it can read tags in bulk from long distance enables it to be deployed in asset management, retail, warehousing, fleet management and etc.

Specification:
Physical Characteristics
Dimensions 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight 654g / 23.07oz
Display 5.2'' IPS FHD 1920x1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Li-ion, rechargeable, 8000mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor
Performance
CPU Cortex-A53 Quad-core 1.3GHz
RAM+ROM 2GB+16GB
Expansion Supports up to 32 GB Micro SD card
User Environment
Operating Temp. -4oF to 122oF / -20oC to 50oC
Storage Temp. -40oF to 158oF / -40oC to 70oC
Humidity 5%RH - 95%RH non condensing
Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature
Sealing Host IP65
ESD ±8KV air discharge, ±4KV conductive discharge
Developing Environment
Operating System Android 6.0
SDK Software Development Kit
Language Java
Tool Eclipse / Android Studio
Communication
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN(Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN(America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Data Collection
Camera
Camera 13MP Autofocus with flash
RFID (Optional)
UHF
Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Linear polarization(1.8dBi); circular polarization (4dBi)
Power 1W (30dBm, +5dBm to +30dBm adjustable)
R/W range >25m (circular polarization, indoors); > 10m (circular polarization, open outdoors); > 21m (linear polarization, indoors); >7m (linear polarization, open outdoors)
Reading rate >200 tags/s (circular polarization)
* Ranges and rates depend on tags and environment
Barcode Scanning (Optional)
1D Linear Scanner Honeywell N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Iris (optional)
Rate <150ms
Range 20-40cm
FAR 1/10000000
HF/ NFC (optional)
Frequency 13.56MHz
*HF RFID is alternative to NFC.

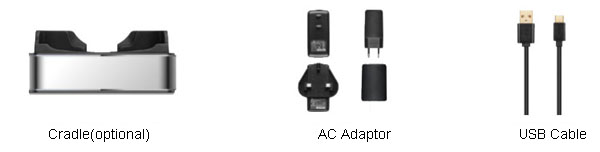

Accessories:
