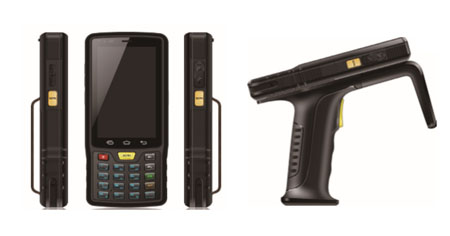

Industrial PAD RFID Reader Industrial PAD RFID Reader OP9908




Standard Parts
General Specifications
Operating System Android 4.4 embedded OS
CPU 1.2GHz
RAM RAM 1G ,ROM 8G or RAM 2G, ROM 16G
Ports One USB 2.0 port(OTG supports U Flash Disk, Mouse, 100M ethenet), one charging mouth, one TF card(128G), one SIM card
Protection Grade
Industrial Protection Grade IP65
Drop Grade Drop resistance from 1.2m
Wireless Communication
Bluetooth V4.0
GPS
Built-in Beidou/GPS/GLONASS; supports A-GPS; External Beidou/GPS/ GLONASS; supports RTCM 2.3 differential data
WIFI WIF Support IEEE 802.11b/g/n
4G FDD/WCDMA/GSM
LTE_FDD B1/B3/B7 LTE_TDD B41/B40
WCDMA B1//B2/B5
GSM 900/1800/1900
Physical Layer Parameter
Display Screen 4 inch LCD screen, 480x800 IPS screen, capacitive touch screen
LED indicator light Thicken tempered glass(thickness 1mm); supports 10 points touch and doubleclick for waking up
Keyboard Physical keypad with 19 phiscal keys
Camera 8.0 million pixels; support auto focus and fi ll-fl ash function
Headset Supports standard headset, Bluetooth headset; support Mike and receiver function
Vibration Function Vibrating prompt function
Sensor Supports light sensation, gyroscope, compass, gravity
Flashlight Functio Used for emergency lighting
Rechargeable Lithium Battery 3.7V, 3800mAh
Handle Battery 3.7V, 5000mAh
Standby The standby current is less than 10mA
Dimension 168mm*75mm*26mm
Weight 350g
