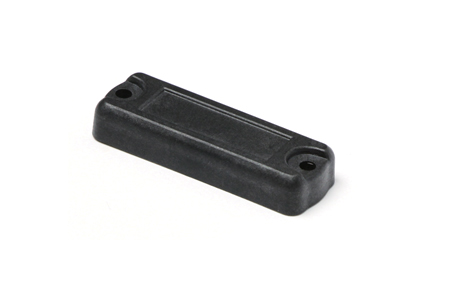

180°C High Temp RFID Tags OPP4014
OPP4014 operates in the UHF frequency band. It is specially designed to withstand high temperatures up to 180 ° and has an IP68 protection rating.
Ergonomic and efficient, the high temperature tag OPP4014 displays reading distances of up to 2.9m with a mobile reader and 4.2m with a fixed reader.
|
Functional Specifications: |
RFID Protocol |
EPC Class1 Gen2, ISO18000-6C |
Frequency |
US 902-928MHz, EU 865-868MHz |
IC type |
Alien Higgs-3, (Available in Monza M4QT, Monza R6, UCODE 7XM+,etc) |
Memory |
EPC 96bits (Up to 480bits) , User 512bits, TID64bits |
Write Cycles |
100,000 times |
Functionality |
Read/write |
Data Retention |
50 years |
Applicable Surface |
on metal |
Read Range:
(Fix Reader) |
4.2m (US) 902-928MHz, on metal;
4.0m (EU) 865-868MHz, on metal; |
Read Range:
(Handheld Reader)
|
2.9m (US) 902-928MHz, on metal;
2.7m (EU) 865-868MHz, on metal; |
Warranty |
1 Year |
Size |
40x14x6.5mm, Hole: dia3.0mmx2 |
Thickness |
6.5mm |
Material |
Antenna: ceramic; shell: PEEK |
Colour |
Black |
Mounting Methods |
Screw-M2.5, Rivet, Back Glue |
Weight |
8.5g |
Enivironmenal Specification: |
IP Rating |
IP68 |
Storage Temperature |
-40℃ to +180℃ |
Operation Temperature |
-25℃ to +150℃ |
Certifications |
Reach Approved,RoHS Approved,CE Approved |
|
