long distance rfid tags

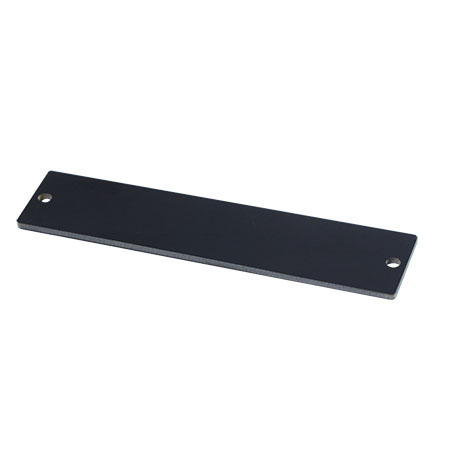

Up to 25m long distance rfid tag PCB8520

  • The PCB8520 is a high-performance long distance RFID tag engineered for metallic environments. When attached to a metal surface and read with a fixed RFID reader, it achieves an impressive read range of up to 25 meters. Its robust design ensures reliable performance in a wide variety of metal-related applications, from industrial asset tracking and equipment management to logistics and warehouse operations, making it an ideal choice for both work and everyday metal-environment tracking needs.
Physical Specification:
Size 85x20mm, (Hole: D3.0x2mm)
Thickness 1.6mm
Material FR4(PCB)
Colour Black ( White,red,green,blue..)
Mounting Methods Adhesive, Screw
Weight 3g

Functional Specifications:
Air Interface Protocol - Standard EPC global Gen2，ISO/IEC 18000-6C
Operating Frequency Global 840Mhz to 960Mhz
IC Type NXP Ucode 8
Memory EPC 128 bits , USER 0 bits, TID 96 bits
Write Cycles 100,000 Times
Functionality Read/write
Data Retention 50 Year
Applicable Surface Metal Surfaces
Read Range(fixed reader) Up to 21m - (US) 902-928 MHz, on metal
Up to 25m - (EU) 865-868 MHz, on metal
Read Range(handheld reader) Up to 10m - (US) 902-928 MHz, on metal
Up to 12m - (EU) 865-868 MHz, on metal
Warranty 1 year

Environmental parameters:
IP Rating: IP68
Storage Temperature -40°C to +150°C
Operation Temperature -40°C to +100°C
Certifications Reach Approved, RoHS Approved, CE Approved
