hard RFID tags

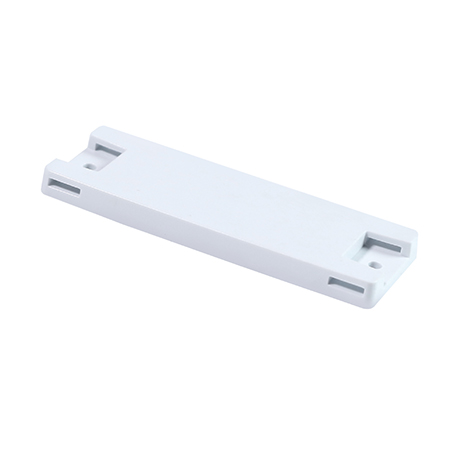

UHF injection-molded on-metal RFID Tag OPP8530

  • The OPP8530 is an injection-molded, on-metal RFID tag encased in a durable PC (polycarbonate) housing. Engineered for use in metal environments, it delivers outstanding read performance with ranges of up to 6 meters. Built to withstand harsh industrial conditions, the tag ensures long-lasting reliability for asset tracking and equipment management. The hard rfid tag OPP8530 is equipped with the Qstar-73GB-O chip, offering stable data storage and excellent read/write capability.
Physical Specification:
Size 85x30mm
Thickness 6.5mm
Material PC
Colour White
Mounting Methods Adhesive, Screw
Weight 11g

Functional Specifications:
Air Interface Protocol - Standard EPC Class1 Gen2, ISO18000-6C
Operating Frequency US 902-928MHz
IC Type Qstar-73GB-O
Memory EPC 128 bits , USER 512 bits, TID 96 bits
Write Cycles 100,000 Times
Functionality Read/write
Data Retention 50 Year
Applicable Surface Metal Surfaces
Read Range(fixed reader) Up to 6.0m - (US) 902-928 MHz, on metal
Read Range(handheld reader) Up to 4.2m - (US) 902-928 MHz, on metal
Warranty 1 year

Environmental parameters:
IP Rating: IP68
Storage Temperature -50°C to +85°C
Operation Temperature -40°C to +85°C
Certifications Reach Approved, RoHS Approved, CE Approved
