Home > products > High Temperature UHF Metal Tag > RFID Tag Devil-8000

high temperature Resistant tag

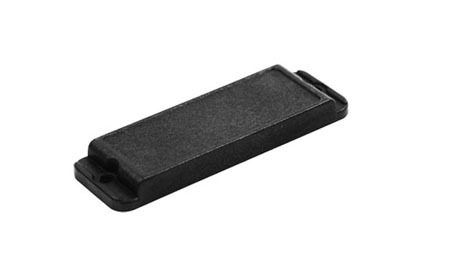

RFID Tag Devil-8000

The high temperature resistant RFID tag devil-8000 operates in the UHF frequency band. It is specially designed to withstand very difficult environments, it has an IP69X protection level.
1)High Temperature Resistant
Withstand high temperature up to 300°С,withstand 260°С for long time.
2)Acid Alkali resistant
Anti acid and alkali,can be used in harsh environment, strong acid and alkali.
3)Applied on metal surface
The read range on metal surfaces can be up to 4.2m.



Functional Specifications:
RFID Protocol EPC Class1 Gen2, ISO18000-6C
Frequency US 902-928MHz, EU 865-868MHz
IC type Alien Higgs-3
Memory EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles 100,000times
Functionality Read/write
Data Retention Up to 50 Years
Applicable Surface Metal Surfaces
Read Range(On Metal) :(Fix Reader) Up to 420cm - (US) 902-928MHz, on metal
Up to 330cm - (EU) 865-868MHz, on metal
Read Range(On Metal) :(Handheld Reader)
Up to 280cm - (US) 902-928MHz, on metal
Up to 200cm - (EU) 865-868MHz, on metal
Warranty 1 Year

Physical Specification:

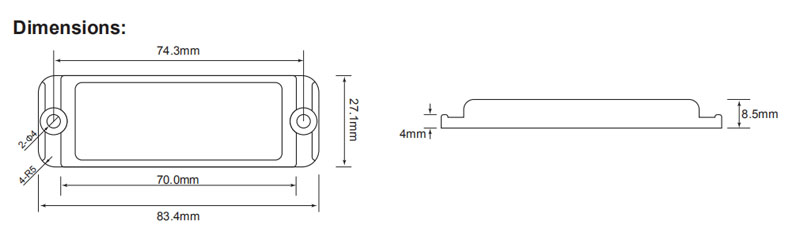

Size 83.4x27.1mm, (Hole: D4mmx2)
Thickness 8.5mm
Material PEEK
Colour Black
Mounting Methods Screw-Hexagon socket head cap screw (M3 / M4)
Weight 24g

Enivironmenal Specification:
IP Rating IP68,IP69X
Storage Temperature -60°С to +260°С, +300°С 100 hours
Operation Temperature -40°С to +200°С
Certifications Reach Approved, RoHS Approved, CE Approved, ATEX Approved.
Withstand PH: PH0 to PH14,and all other liquid that PEEK can handle with.
Compression strength: 150Mpa
Reliability testing terms and results: a. Withstand 300°С for 100 hours continuously without damage.
b. Withstand 280°С for 1000 hours continuously without damage.
c. Withstand 260°С for 2000 hours continuously without damage.
d. Withstand -20°С for 8 hours then 260°С for 16 hours per day, 80 days continuously without damage.
e. Withstand from 150°С to -40°С, 7.5 cycles per day, 80 days continuously with total 600 cycles without damage.
f. Withstand 260°С for 100 hours continuously then soaking in 2 meters depth water for 48 hours, without seepage or damage.
