heavy-duty RFID tag

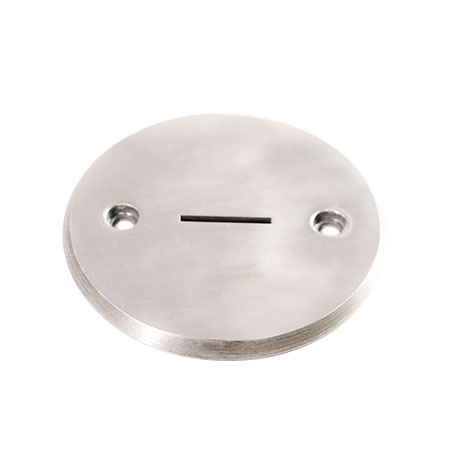

Heavy-duty RFID tag OPPD80 use in non-metal and harsh outdoor environments

  • The OPPD80 is a heavy-duty RFID tag encased in 304 stainless steel, offering exceptional pressure resistance. Designed for use in non-metal environments, it is ideal for installation in various road surfaces and can withstand extreme conditions such as vehicle crushing, heavy impacts, and harsh outdoor environments. Its robust construction ensures long-term durability and reliable performance, even under the most demanding applications.
Physical Specification:
Size D80.0mm, (Hole: D5.5mmx2)
Thickness 6.0mm
Material 304 stainless steel
Colour Gray
Mounting Methods Screw
Weight 153g

Functional Specifications:
Air Interface Protocol - Standard EPC Class1 Gen2, ISO18000-6C
Operating Frequency US 902-928MHz
IC Type NXP Ucode 8
Memory EPC 128 bits , USER 0 bits, TID 96 bits
Write Cycles 100,000 Times
Functionality Read/write
Data Retention 50 Year
Applicable Surface Metal Surfaces
Read Range(fixed reader) Up to 1.8m - (US) 902-928 MHz, on metal
Read Range(handheld reader) Up to 1.1m - (US) 902-928 MHz, on metal
Warranty 1 year

Environmental parameters:
IP Rating: IP68
Storage Temperature -40°C to +100°C
Operation Temperature -30°C to +80°C
Certifications Reach Approved, RoHS Approved, CE Approved
